Calculator-Example

This is a simple example of an calculator "agent system" using the Agents Platform and based on Agent Template.

Start by docker compose up and open web interface of management at http://localhost:8080/.

Calculator

A riddle is a math expression, e.g., x * y =. The values of the variables x and y are defined via text files, e.g., a line x = 10 in text file assigns the value to 12 to the variable x.

For example, the result of a riddle x * x = would be 100 with the explanation 10 * 10 = 100.

Riddle Example

In this example the values of the variables are x = 10, y = 15, and z = 20; see the files in ./data/share/example/.

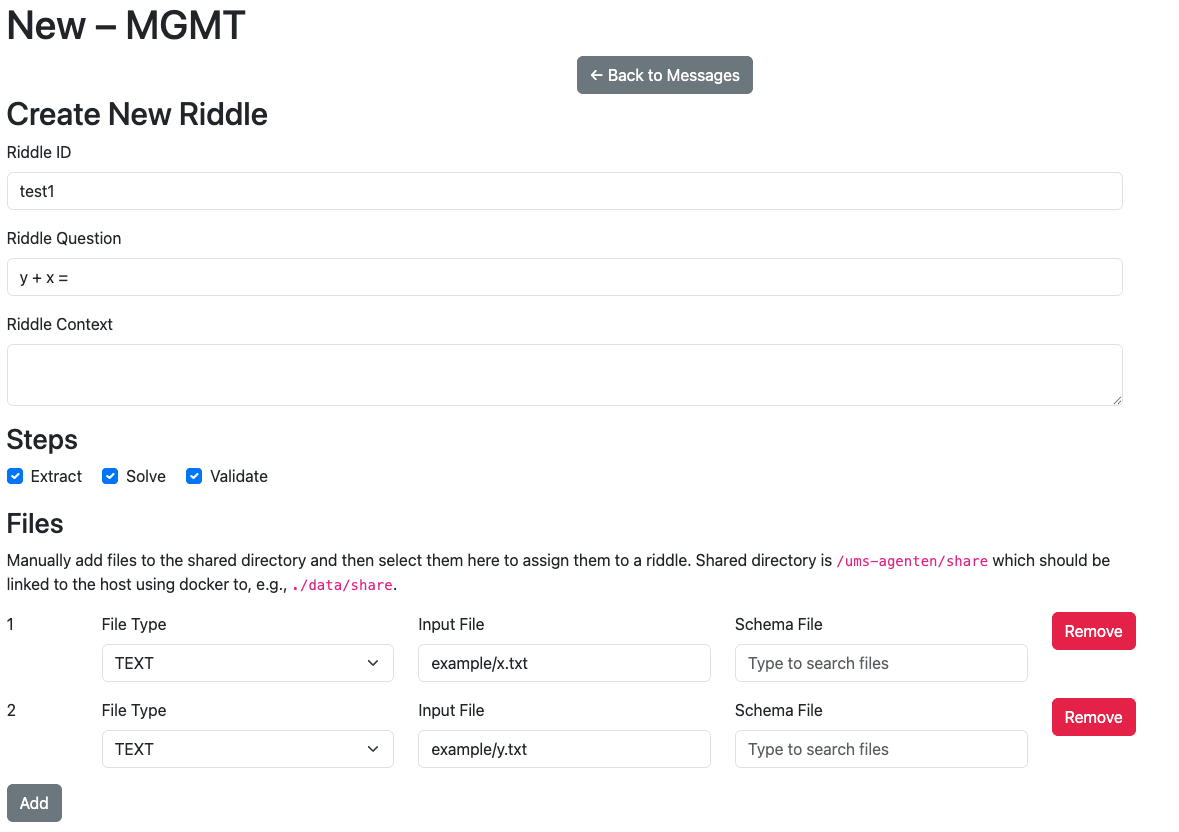

1. You can send a riddle to management via the web interface (http://localhost:8080/app/new) by filling out the form and clicking "Send Message.":
2. The message to management will look like this:

   {
     "id": "test1",
     "sub_ids": [],
     "riddle": {
       "context": "",
       "question": "y + x =",
       "solutions_before": []
     },
     "solution": [],
     "data": [
       {
         "type": "text",
         "file_plain": "example/z.txt",
         "file_extracted": null
       },
       {
         "type": "text",
         "file_plain": "example/y.txt",
         "file_extracted": null
       }
     ],
     "status": {
       "extract": {
         "required": true,
         "finished": false
       },
       "solve": {
         "required": true,
         "finished": false
       },
       "validate": {
         "required": true,
         "finished": false
       },
       "trial": 0,
       "solved": false
     },
     "contacts": 0
   }


3. Afterwards, messages will be sent between agents while they solve the riddle. These messages are viewable in the web interface. (http://localhost:8080/app/table).

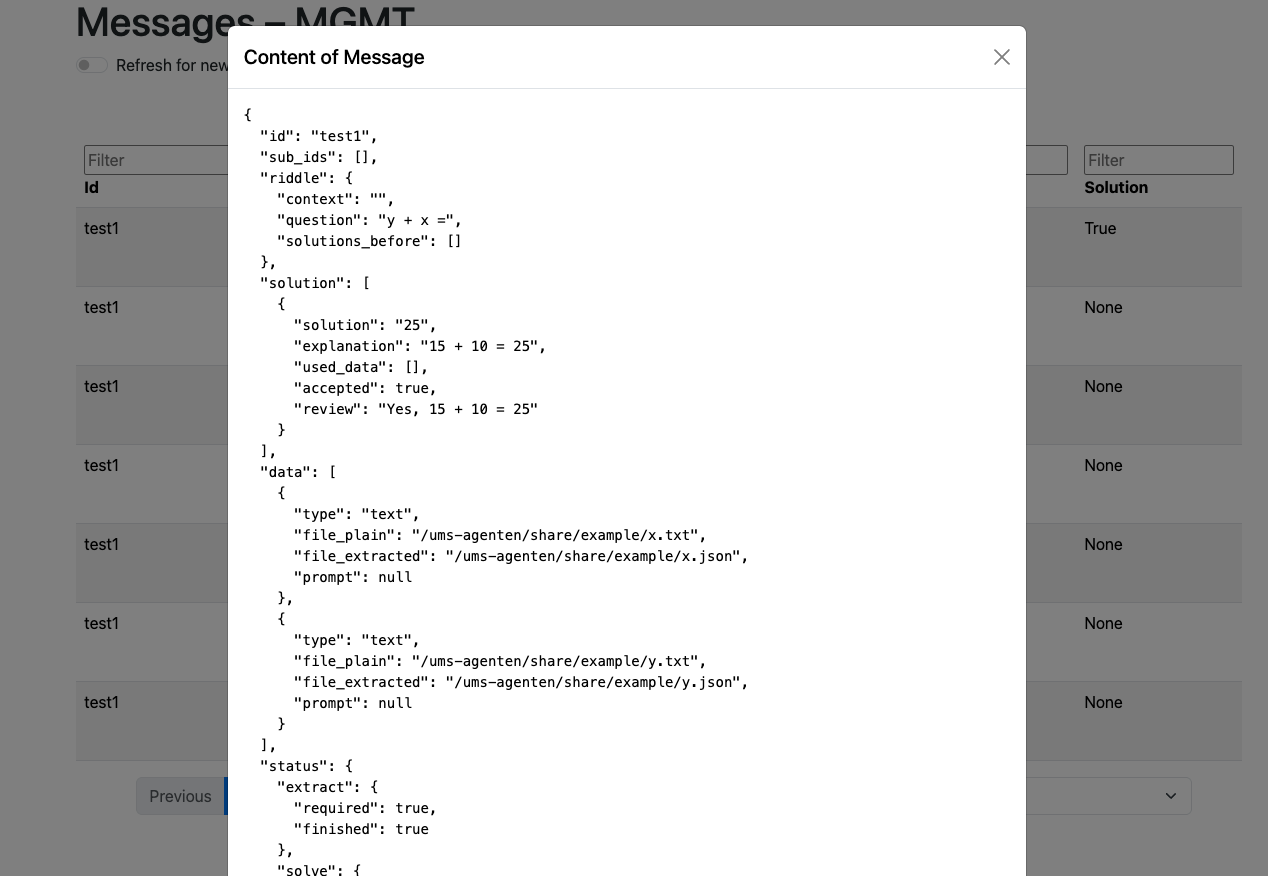

4. The result can finally be found in the latest message.:
